Unlocking the Power of Infrared Temperature Guns to Detect Misaligned Bearings Through Heat Signature Analysis
- Kerin Epperly, CLSSMBB
- Jul 22
- 5 min read
Misaligned bearings can cause serious damage to machinery, leading to costly repairs and downtime. Detecting these issues early is crucial for maintenance teams aiming to keep equipment running smoothly. One surprisingly effective and affordable tool for this task is the infrared temperature gun. When used regularly and with an understanding of heat signatures, this simple device becomes a powerful ally in identifying misaligned bearings before they cause major problems.
This post explains how to recognize the heat signature of a misaligned bearing using an infrared temperature gun, why this heat pattern occurs, and how regular temperature monitoring can transform a basic tool into a critical part of your maintenance routine.
Misaligned Bearings Generate Heat
Bearings support rotating shafts and reduce friction between moving parts. When a bearing is properly aligned, friction is minimized, and the bearing operates at a stable temperature. Misalignment causes uneven load distribution, increasing friction and wear on specific parts of the bearing.
This extra friction generates heat, which can be detected on the bearing’s surface. The heat signature of a misaligned bearing typically shows:
Localized hot spots where the misalignment causes excessive pressure
A temperature gradient, with the hottest area near the point of misalignment
A steady rise in temperature over time if the issue is not corrected
The heat pattern is not uniform. Instead, it often appears as a concentrated area of elevated temperature, distinct from the surrounding cooler regions. This uneven heating is a clear indicator of mechanical stress caused by misalignment.
Understanding Bearing Misalignment and Its Impact
Bearings support rotating parts and reduce friction. When they are misaligned, the load distribution changes, causing uneven wear and increased friction. This leads to:
Excess heat generation
Premature bearing failure
Increased energy consumption
Potential damage to connected components
The heat produced by a misaligned bearing is a key indicator of its condition. If detected early, maintenance teams can intervene before catastrophic failure.

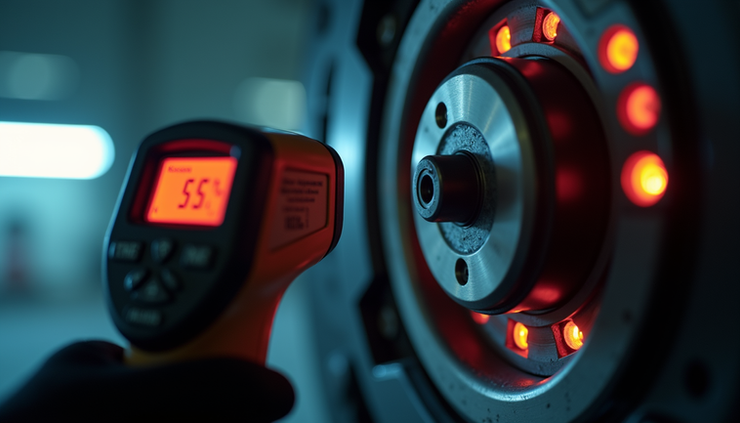

Using an Infrared Temperature Gun to Detect Misalignment
Infrared temperature guns measure surface temperature without contact by detecting infrared radiation. They are inexpensive, portable, and easy to use, making them ideal for routine inspections.
Steps to Detect Misaligned Bearings
Baseline Measurement
Start by measuring the temperature of properly aligned bearings under normal operating conditions. Record these baseline temperatures for comparison.
Regular Monitoring
Take temperature readings at consistent intervals—daily, weekly, or monthly depending on machine usage. Always measure the same points on the bearing housing.
Identify Abnormal Heat Signatures
Look for temperature increases above the baseline, especially localized hot spots. A rise of 10°F (5.5°C) or more can indicate misalignment or other bearing issues.
Compare Temperature Patterns
Use recorded data to track temperature trends. A steady increase or uneven heat distribution suggests developing misalignment.
Confirm with Physical Inspection
After detecting abnormal heat, inspect the bearing for signs of wear, lubrication issues, or misalignment.
Why Regular Measurements Matter
A single temperature reading offers limited insight. The real value comes from tracking changes over time. Regular measurements help:
Spot trends early before damage becomes severe
Differentiate between normal temperature fluctuations and real problems
Plan maintenance proactively to avoid unexpected failures
Validate repairs by confirming temperature returns to baseline after alignment correction
Consistent data collection turns a simple infrared temperature gun into a powerful diagnostic tool.
Understanding the Heat Signature Shape
The heat signature of a misaligned bearing is often asymmetric. This happens because misalignment causes uneven pressure on the bearing rollers or balls, increasing friction in specific areas.
Angular misalignment causes one side of the bearing to heat more than the other.
Parallel misalignment can create a band of heat along the bearing surface.
Combined misalignment results in complex heat patterns with multiple hot spots.
Recognizing these patterns helps maintenance personnel distinguish misalignment from other issues like lubrication failure or bearing fatigue, which produce different heat signatures.
Practical Example: Detecting Misalignment in a Conveyor System
A manufacturing plant used infrared temperature guns to monitor conveyor bearings. Baseline temperatures averaged 90°F (32°C). Over several weeks, one bearing showed a steady temperature rise to 110°F (43°C) with a clear hot spot on one side.
The maintenance team inspected the bearing and found it was misaligned due to a worn shaft coupling. After realigning the bearing and replacing the coupling, the temperature returned to baseline within days.
This example shows how simple temperature monitoring can prevent bearing failure and costly downtime.
Using an Infrared Temperature Gun Effectively
Infrared temperature guns are handheld devices that measure surface temperature without contact. They are affordable, easy to use, and provide instant readings. To harness their full potential for bearing maintenance:
Establish baseline temperatures: Measure bearings when they are known to be in good condition. Record these values for comparison.
Measure consistently: Take readings at the same points on the bearing housing, under similar operating conditions.
Record data regularly: Maintain logs to identify trends over time.
Understand environmental factors: Ambient temperature, airflow, and machine load affect readings. Adjust expectations accordingly.
Use proper technique: Hold the gun steady and perpendicular to the surface, avoiding reflections or obstructions.
Practical Steps to Implement Regular Temperature Monitoring
Create a monitoring schedule: Depending on machine criticality, measure bearing temperatures daily, weekly, or monthly.
Train maintenance staff: Ensure everyone understands how to use the infrared gun and interpret results.
Set alert thresholds: Define temperature limits that trigger inspections or maintenance actions.
Integrate with maintenance records: Combine temperature data with vibration analysis, lubrication checks, and visual inspections.
Review and adjust: Analyze data trends to refine thresholds and schedules.
Tips for Accurate Temperature Measurement
Measure at the same spot on the bearing housing each time
Avoid measuring through dust or grease that can affect readings
Use the correct emissivity setting on the infrared gun for metal surfaces (usually around 0.95)
Take multiple readings and average them for accuracy
Record ambient temperature to understand environmental effects
Beyond Bearings: Other Uses of Infrared Temperature Guns in Maintenance
While this post focuses on misaligned bearings, infrared temperature guns can detect other mechanical issues:
Overheated motors
Electrical panel hotspots
Friction in gears and belts
Cooling system failures
Regular temperature monitoring supports a broader predictive maintenance program.
Benefits of Using Heat Signatures for Maintenance
Cost-effective: Infrared guns are affordable compared to vibration sensors or thermal cameras.
Non-invasive: No need to stop machines or disassemble parts.
Fast and easy: Instant readings allow quick checks during routine rounds.
Predictive maintenance: Early detection reduces unplanned downtime.
Improved safety: Prevents catastrophic failures that could endanger workers.
Common Challenges and How to Overcome Them
False positives: Surface temperature can be affected by external heat sources. Cross-check with other indicators like vibration.
Inconsistent readings: Ensure consistent measurement points and environmental conditions.
Data overload: Use simple spreadsheets or maintenance software to track and analyze data.
Limited range: Infrared guns measure surface temperature only; internal bearing faults may require complementary methods.
Expanding the Use of Infrared Temperature Guns
Beyond bearings, infrared temperature guns can monitor other components prone to heat-related issues:
Electrical connections
Gearboxes
Motors
Hydraulic systems
Regular temperature monitoring across machinery helps build a comprehensive maintenance program that reduces failures and extends equipment life.
Final Thoughts on Using Heat Signatures for Maintenance
Knowing the heat signature of a misaligned bearing turns a basic infrared temperature gun into a valuable maintenance tool. Regular measurements and careful record-keeping allow teams to detect problems early, plan repairs, and avoid costly downtime. This simple approach empowers maintenance staff to protect machinery and improve operational reliability with minimal investment.
Start by establishing baseline temperatures and a consistent monitoring routine. Use the data to spot trends and act before small issues become major failures. With this method, even inexpensive tools can deliver powerful results in maintaining machine health.
Tracking the heat signature of misaligned bearings with an infrared temperature gun is a cost-effective way to catch problems early. By understanding the unique heat patterns caused by misalignment and taking regular measurements, maintenance teams can extend equipment life, reduce downtime, and save money. Start building your temperature baseline today and turn your infrared temperature gun into a powerful diagnostic tool.
