Fastener Name

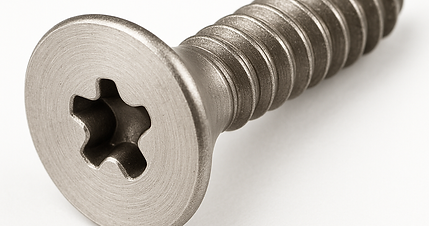

Torx Flat Head Steel Screw

Functionality

1.) Visual inspection of head, threads, and seating
2.) Torque verification if critical application
3.) Look for signs of movement or loosening
4.) Check for corrosion or material degradation

Provides strong mechanical fastening with flush head. Torx drive allows high torque transmission with reduced cam-out.

Industry Used

Automotive, Aerospace, Electronics, Furniture, Medical devices, Manufacturing and machinery assembly

Functional Design

Torx (6-lobe) recess. Flat (countersunk) head. Precision-machined threads. Optional coating or plating.

Torx Flat Head Steel Screw

Thread Design

1.) Standard machine screw threads. May be fine or coarse thread depending on application. Designed for metal-to-metal or metal-to-insert fastening.

5–15 years depending on environment, load, and maintenance. Shorter in corrosive or high-vibration settings.

Lifespan

1.) Stripped or cammed-out drive 2.) Head deformation or mushrooming 3.) Thread wear or galling 4.) Rust or corrosion (if not stainless or coated) 5.) Loss of torque retention or loosening

Signs of Failure

1.) Drive recess is stripped 2.) Threads are damaged or rusted 3.) Head no longer seats flush 4.) Screw fails torque test 5.) Detected fatigue or bending

When to Replace

1.) Use correct Torx bit to avoid head damage 2.) Apply anti-seize or threadlocker if applicable 3.) Replace if damaged or corroded 4.) Maintain proper torque during installation 5.) Avoid mixing metals to prevent galvanic corrosion

How to
Maintain

1.) Visual inspection of head, threads, and seating 2.) Torque verification if critical application 3.) Look for signs of movement or loosening 4.) Check for corrosion or material degradation

Inspection

1.) Monthly in high-vibration or critical safety applications 2.) Quarterly in standard machinery 3.) Annually in non-critical static assemblies

Inspection Frequency

Analysis

1.) Torx drive reduces cam-out and allows for high torque applications 2.) Flat head provides a clean, flush surface 3.) Vulnerable to corrosion if untreated 4.) Requires precision for proper countersink fit

Better Alternative

Similar Fasteners

Type of Washer

Countersunk finishing washer (if needed). Lock washer may be used on nut side if applicable.

Type of Nut

Hex nut or flange nut (if required). Locknut if vibration resistance is needed.
