Home Inspection - HVAC AC Condenser Unit
Sample Report - WWW
Condenser Coil (Outdoor Unit)
HVAC-EXT-AC-001
Chris Petterson
July 28, 2025 at 4:45:00 PM
2.00
2.00
2.00
3.00
2.00
1.82
Reduced cooling efficiency and compressor stress
Mid-section of the condenser coil, running laterally across multiple coil fins.

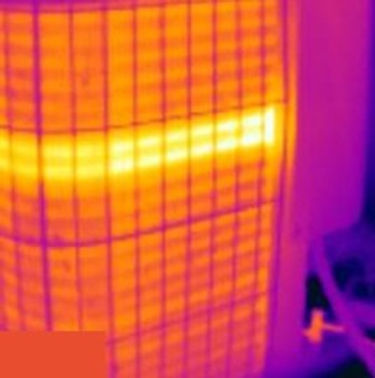

An abnormally hot horizontal band is visible across the center section of the condenser coil.
Reduced cooling efficiency and compressor stress
1.) Restricted airflow due to internal or external blockage
2.) Possible refrigerant imbalance or contamination
3.) Fouled or corroded coil inhibiting proper thermal exchange
4.) Fan failure or improper fan speed
1.) Non-uniform heat distribution in condenser coils with a hotter region in upper coils
2.) Central coil section significantly hotter than surrounding areas
3.) Reduced airflow or ineffective heat dissipation likely
4.) Higher than normal energy usage
1.) Perform a visual inspection for debris, dirt, or physical damage on the coil
2.) Use a refrigerant pressure gauge to assess system pressures
3.) Measure amp draw and verify fan motor operation
4.) Inspect for any internal refrigerant line restrictions or kinks
1.) Clean condenser coil thoroughly using approved coil cleaner
2.) Verify refrigerant charge and inspect for leaks
3.) Inspect and service fan motor and capacitor
4.) Replace or repair damaged sections if internal blockage or corrosion is found
5.) Schedule a certified HVAC technician for a system performance test
Neglected coil maintenance and/or environmental contaminants (pollen, dust, leaves) leading to uneven heat exchange and thermal inefficiency.
Report Controls:
This Filter controls the main report above.
Instructions:
1.) Click on the Reset button to display all reports.
2.) Select the report you are interested in by clicking in the table on the report.
3.) Click on the Filter button to update the main report.
Title | Component | Inspection Date | Signs and Symptoms | Thermal Visual Cue | Likely Issue | Thermal Image Upload |
|---|---|---|---|---|---|---|
Home Inspection - HVAC AC Condenser Unit | Condenser Coil (Outdoor Unit) | 28/07/2025 | 1.) Non-uniform heat distribution in condenser coils with a hotter region in upper coils
2.) Central coil section significantly hotter than surrounding areas
3.) Reduced airflow or ineffective heat dissipation likely
4.) Higher than normal energy usage | An abnormally hot horizontal band is visible across the center section of the condenser coil. | 1.) Restricted airflow due to internal or external blockage
2.) Possible refrigerant imbalance or contamination
3.) Fouled or corroded coil inhibiting proper thermal exchange
4.) Fan failure or improper fan speed |
